WELL CONSTRUCTION
PROCESS OF CONSTRUCTION OF A WELL ON SOLAR PANELS
01) Identification of Location
- First, we identify a location where at least 15 to 50 household benefitted
- There should be sweet water under ground
- Well will be installed in open area where easily access of all households and water can be used for livestock
- Also, they can grow vegetables there.
- Send the pictures and videos of identified locations to financial institutions
02) Drilling of a Well
- After acceptance of donations/funds we start the drilling of well
- Manual Drilling By hand: where soft soil from range of 50feet to 250feet diameter of drill 3 inch
- Drilling of well through machine where rock underground and depth is greater than 250 feet the diameter of bore is 5inch, 8 inch

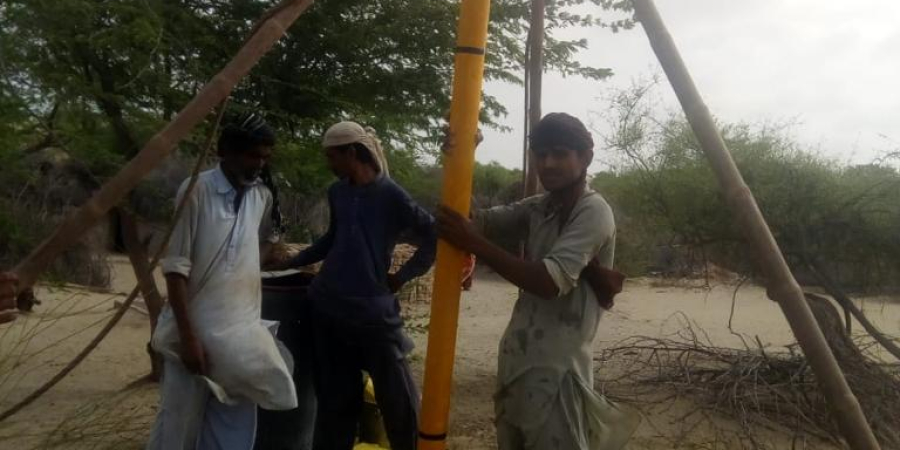

03) Installation of Pipes (Casing)

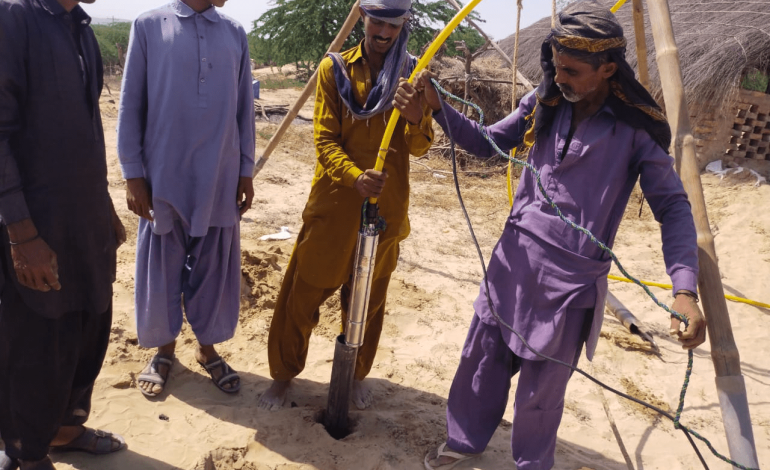

04) Installation of Water Moter

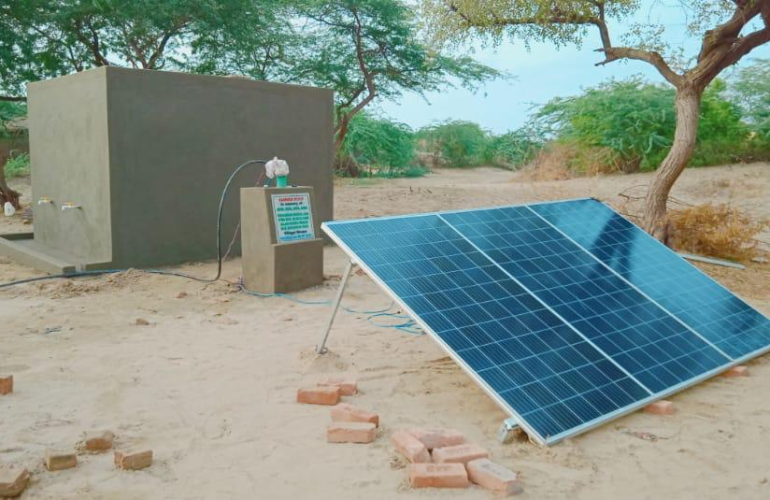

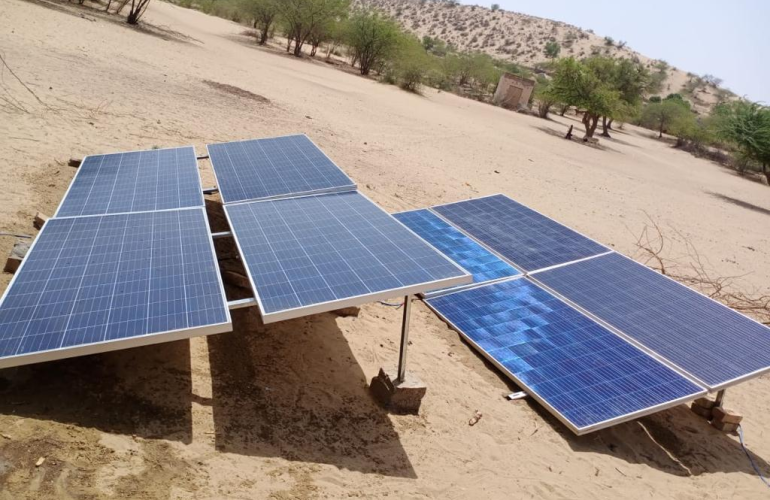

05) Power Supply (installation of Solar Panels)

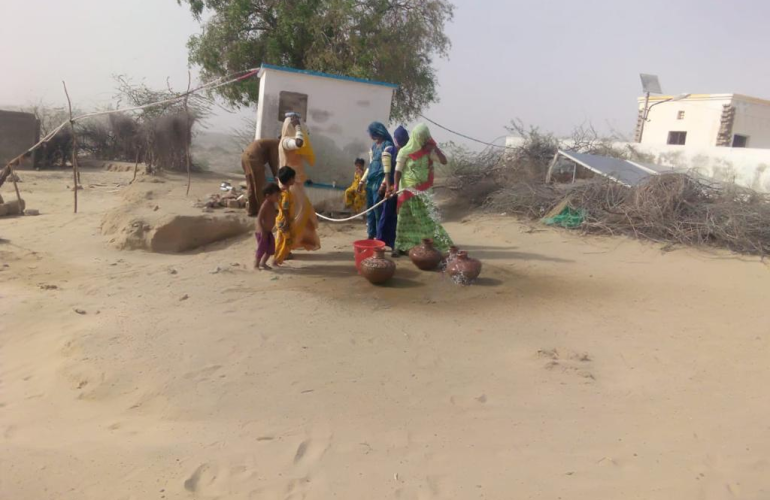

06) Access of Water
07) Access of Water
08) Completion of a well on Solar panels
Cost mechanism of a well for drinking water.
- Depth ranges from 50feet to 100 feet total cost including tank PKR 250,000
- Depth ranges from 100 feet to 150 feet total cost including water tank PKR 350,000
- Depth ranges from 150 feet to 200 feet total cost including water tank PKR 400,000
- Depth ranges from 200 feet to 250 feet total cost including water tank PKR 500,000
- Depth ranges from 250 feet to 350 feet total cost including water tank PKR 600,000
- Depth ranges from 350 feet to 600 feet total cost including water tank PKR 1,300,000
- Above range from 600feet not feasible
Cost mechanism of a well for Agriculture.
- Depth ranges from 50feet to 100 feet total cost including water tank PKR 500,000
- Depth ranges from 100 feet to 150 feet total cost including water tank PKR 750,000
- Depth ranges from 150 feet to 200 feet total cost including water tank PKR 1,000,000
- Depth ranges from 200 feet to 250 feet total cost including water tank PKR 1,500,000
- Above range from 250feet not feasible
